Lasso Slot – S3 Direct (Patterns) (Cable, Stem, or Ceiling Mount Fixture w/IP20 Rating)

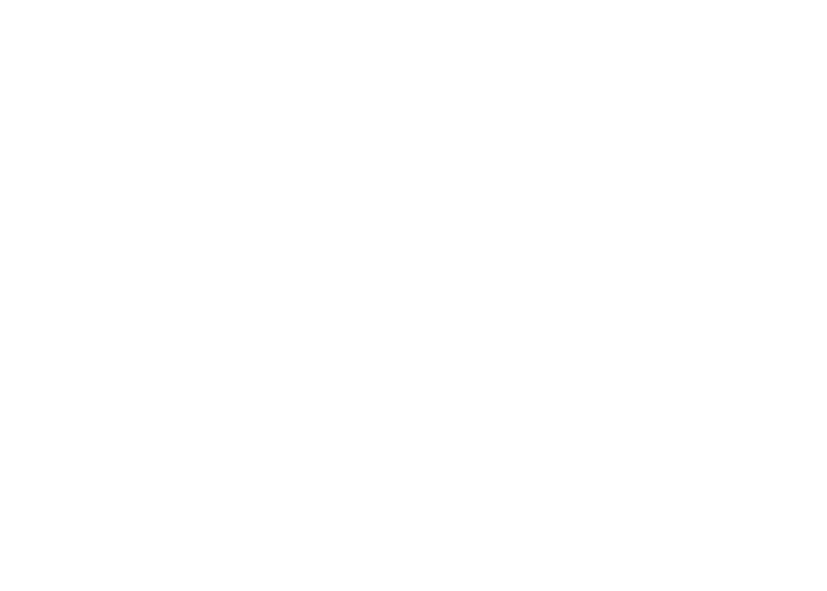

PAL Architectural Lighting presents the new LASSO SLOT – S3 – Direct. Either suspended or surface mounted, the LASSO SLOT S3 profile allows you the ability to form myriad shapes and patterns – from simple curved corners to the most complex configurations. With your imagination as your guide, the possibilities are limitless.

At only 2.795” in width, the LASSO SLOT S3 – Direct is a sleek, compact form that creates minimal spatial footprint, while at the same time creating a striking architectural statement.

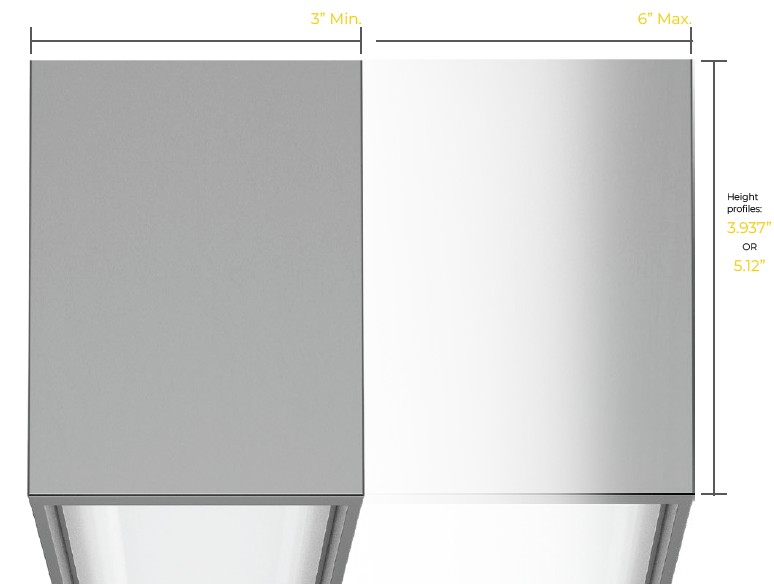

2.795″ Wide x 3.937 High

Housing

Constructed of extruded aluminum and available in various curve-shape lit fixtures, as well as single straight sections of nominal 2′, 3′, 4′, 5′, 6′, 7′, and 8′ long. In combination, custom fixture patterns are available.
Standard flange finish is te4xtured matte white or textured matte black. Custom flange colors are also available.

Lens/Diffusers

(FAL) Frosted acrylic snap-in lens, with magnetic retention location locks.
(PL) Heavy-duty polycarbonate snap-in lens, with magnetic retention location locks. Lens is IK08 rated for impacts.

Finish

Standard housing finish is textured matte white or textured matte black. Custom colors are also available.

Gear Tray/LED Module

Removeable gear tray is constructed of solid aluminum, has LED module attached and is designed for quick and simple ‘single person’ installation or removal.

Color Temperatures/CRI

LED light sources are available for the following Co-ordinated Color Temperatures (CCT):
Standard: 3000K, 3500K, 4000K, & 5000K
Tunable White: Variable CCT range from 2700K thru 6500K
RGBW: (Red, Green, Blue, White) color-changing logic module is rated at 90+ CRI and is available in standard High Output and Medium Output.
Contact factory for available custom outputs.
Color Rendering Index (CRI): Standard: 90

Warranty

10-year limited warranty. No other warranty is expressed or implied. Complete warranty terms can be accessed by visiting this link.

Certifications

Fixtures are UL listed for use in ‘Dry or Damp Applications’. Fixtures are CE listed for the European market. Fixtures also carry an EMC rating (electromagnetic compatibility).

Click below to download our brochure.

Click on the following links for specifications:

LASSO S3 LED SPEC. SHEETS:

INSTALL INSTRUCTIONS:

Click on the following links for safety and mounting installation instructions:

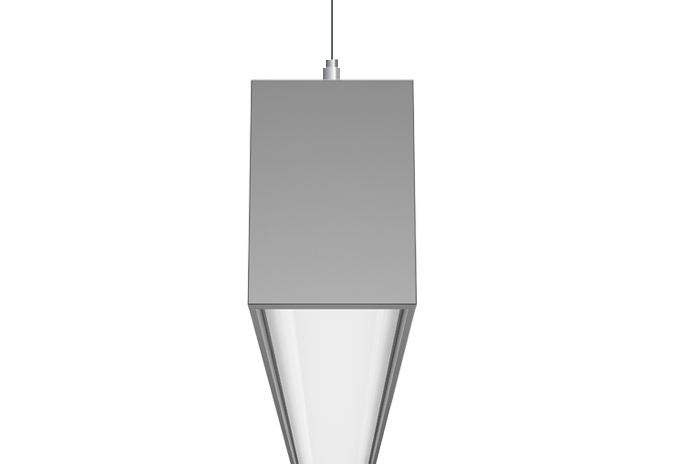

Cable Suspended

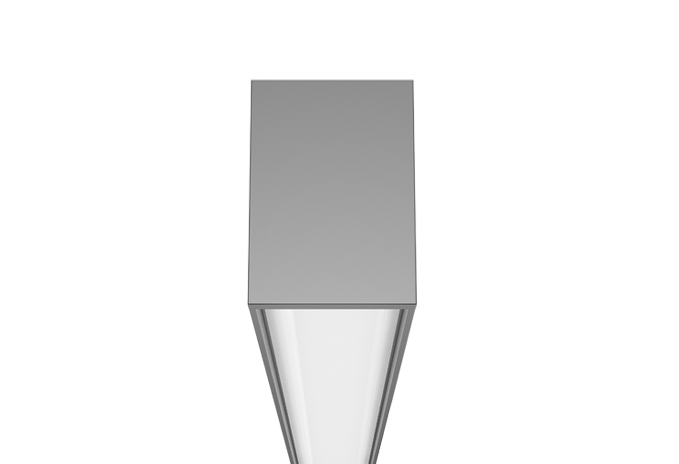

Slot Surface Mount

Stem Mount
